PSP plug and play Harness for Honda Ruckus with Swapped Gy6 motors ( ATR Replacement )

Availability:

In stock


$249.00

In stock

By submitting your payment, you agree to our terms and conditions.

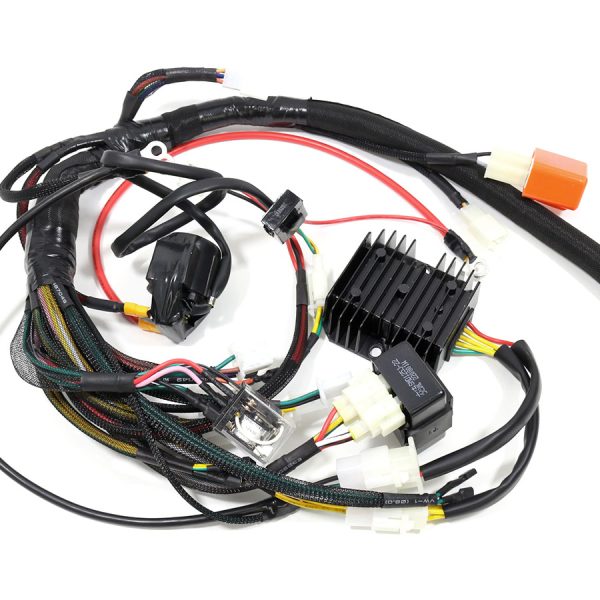

New PSP plug and play Harness for Honda Ruckus with Swapped Gy6 motors.  Added features over most GY6 harnesses on the market . Cost less than half the starting price of the most expesive harness with all the same features. High-end black loom with all loom ends and connectors head shrinked.

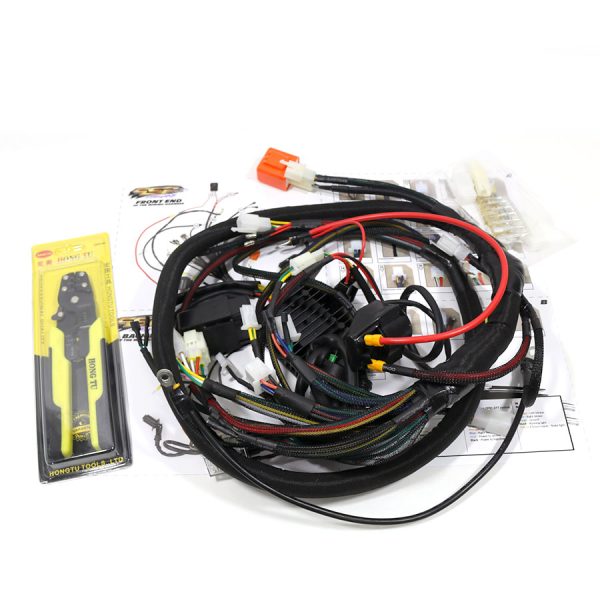

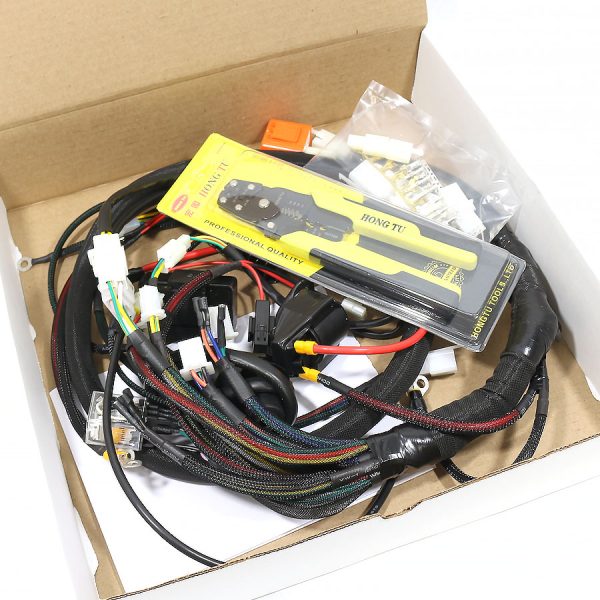

Includes:

  • Complete Harness for GY6 11 Pole Motor

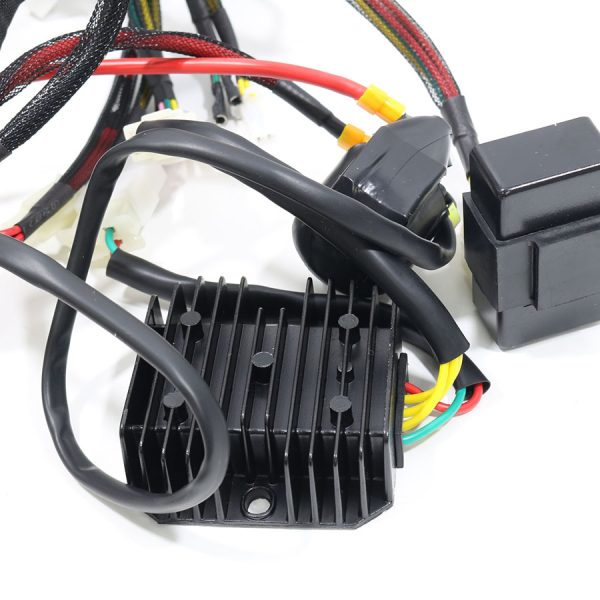

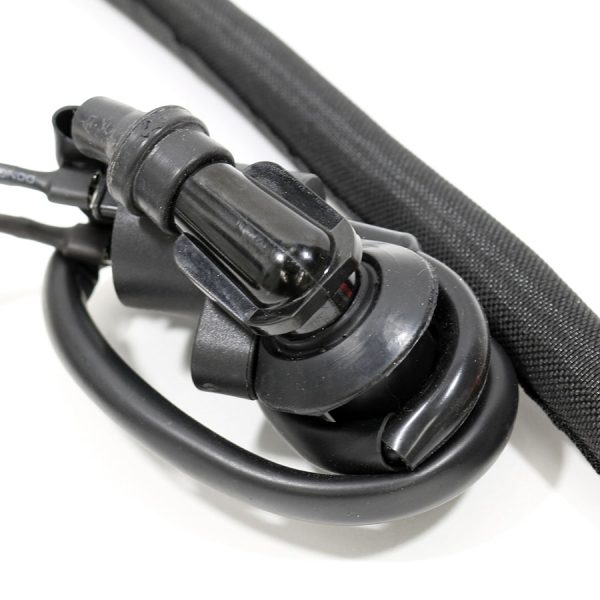

  • CDI , Rectifier, Coil and Starter Relay. Plugged in

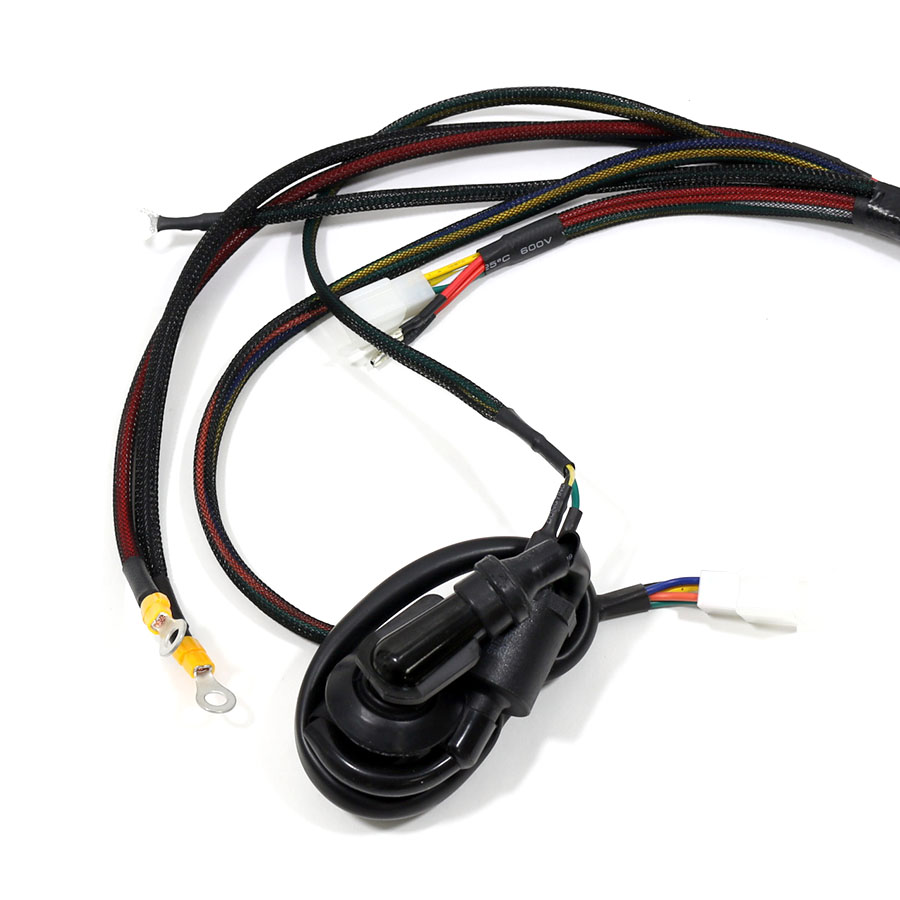

  • Installed Honda Ruckus Ignition plug

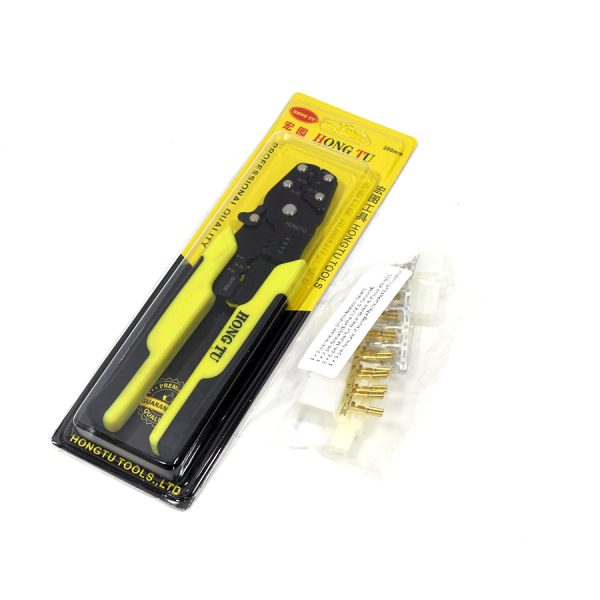

  • Pin Crimp Tool
  • Extra Pins and Connectors
  • Full Color instruction including pin colors, connector type, and wiring pin diagram.



TRS Installation notes and recommendation:

Extra pins and plugs included in the PSP Harness. Extra pins and connectors allows the customer to use whatever rear tail light they choose, such as our TRS Slim Strip LED TaillightTRS R6 under seat Tail light or the REAR FLUSH Mount TAIL LIGHT .

If customer uses OEM Left control it plugs right in the harness. If you decided to use an aftermarket control such as our TRS Mini Switch the pins and connector are included for the switch. You can provide your own aftermarket switch since PSP has included the wiring layout on the instructions.

Customer can purchase a KOSO XR-01S seperately but not required for harness to work. If you do purchase a KOSO XR-01S we recommend getting a Metroplitan Fuel sending Unit. The Stock OEM Ruckus Fuel sending unit is a 2 pin and does not show levels.  ONLY empty. The Metroplitan Fuel sending Unit uses a 3 pin and plugs right into the PSP harness, showing fuel level once calibrated to the KOSO XR-01S.  A 6 pin plug and pins are included for the KOSO XR-01S  The Harness already has the 6 pin Male connector installed.

Harness has an extra 12 volt plug. PSP have included a 2 pin female plug and pins for whatever you want to use it for.

PSP harness has 2 pin start button plug and they provided you with a 2 female pin and plug. Customer can use their own start button. We sell both the MINI 12mm START BUTTON . Many customers place Mini Start buttom on the lower left corner of the battery box or purchase the BLOCK OFF PLATE W/ START BUTTON which uses the stock location of the Fuel light/ Hi beam. Best of all they have even included the tool for the pins for FREE in each kit.

Headlights are wired 12V DC. Turn on the Ruckus lights will turn on.

Timing Pick Up wires will be red/black to red/black.  The blue with white stripe goes to solid red.

Sometimes the pins come undone on the ICE CUBE CLEAR RELAY here’s where they go



If your motor is NOT an 11 pole you will need to purchase an 11 POLE STATOR along with the GY6 Flywheel Puller.



The Ruck Shop is not responsible for any electrical issues that may result in the installation of a GY6 Wire Harness and should be installed by a professional.

Please see our Warranty & Returns Policy.



SKU: PSP03HGY6 Categories: , Tags: , ,
Weight 3 lbs
Dimensions 14 × 14 × 3 in
